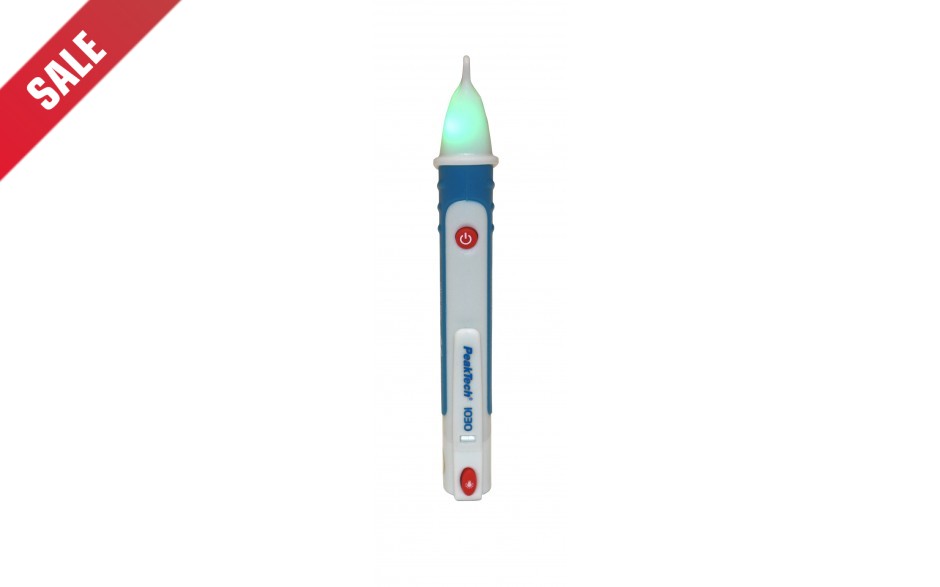

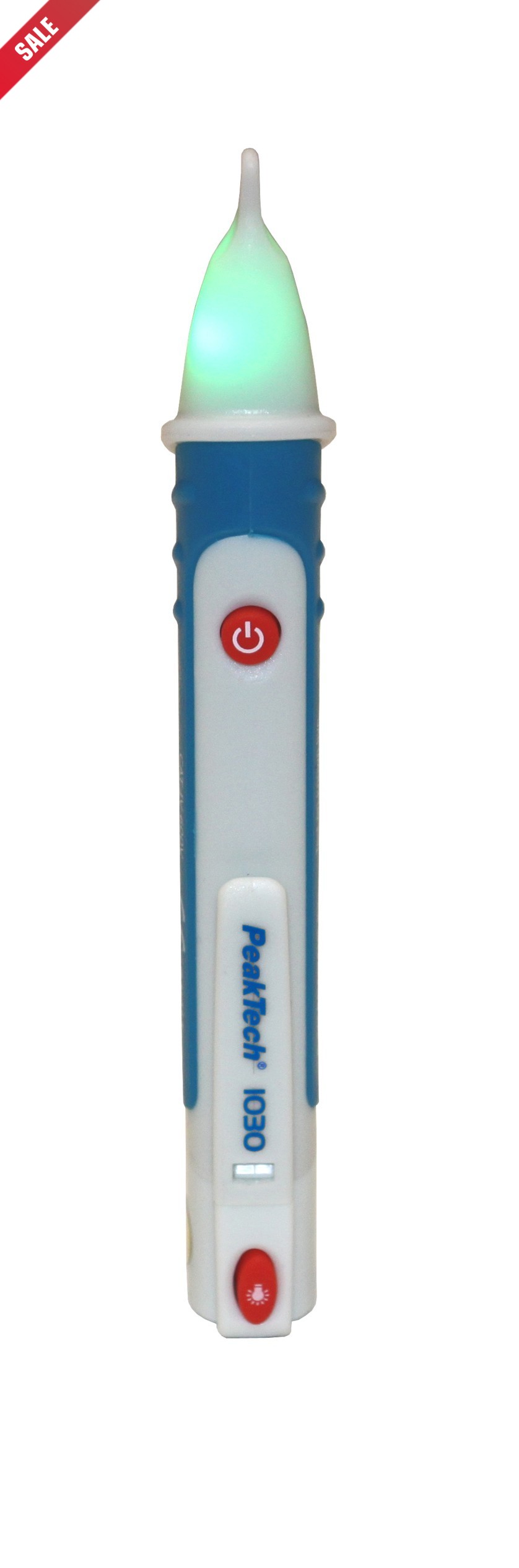

PeakTech 1030 AC Spanningstester

Artikelnr.
FLC035-P 1030
Prijs

Normale prijs: € 11,40 (Excl. BTW)

Educationele prijs € 10,26 (Excl. BTW)

Easy to use, for non-contact detection of AC voltage from 90 V to 1000 V. Suitable for outlets, lamp sockets or against wire insulation testing. Suitable for conductor tracking of flush-mounted cables and localisation of line interruptions. If AC-voltage is at the measuring point, it is visually indicated by a flashing red LED and the integrated buzzer sounds. The probe lights green when the measuring point is free of voltage.

Uitvoering

  • Akoestisch en optisch signaal als er een spanning is gevonden bij het meetpunt
  • Behuizing met clip is niet geleidend voor veiligheid
  • Ingebouwde zaklamp met aan/uit knop
  • Veiligheid: EN 61010-1; CAT III 1000 V

Omvang levering

  • Batterijen
  • Handleiding
Meetbereik V/AC90 t/m 1000 V, 50 / 60 Hz
Bedrijfsspanning1,5 V AAA batterij (x 3)
Afmetingen (B x H)157 x 26 mm
Gewicht50 g

Technische specificaties zijn terug te vinden in de handleiding/datasheet onder de tab "Downloads"
